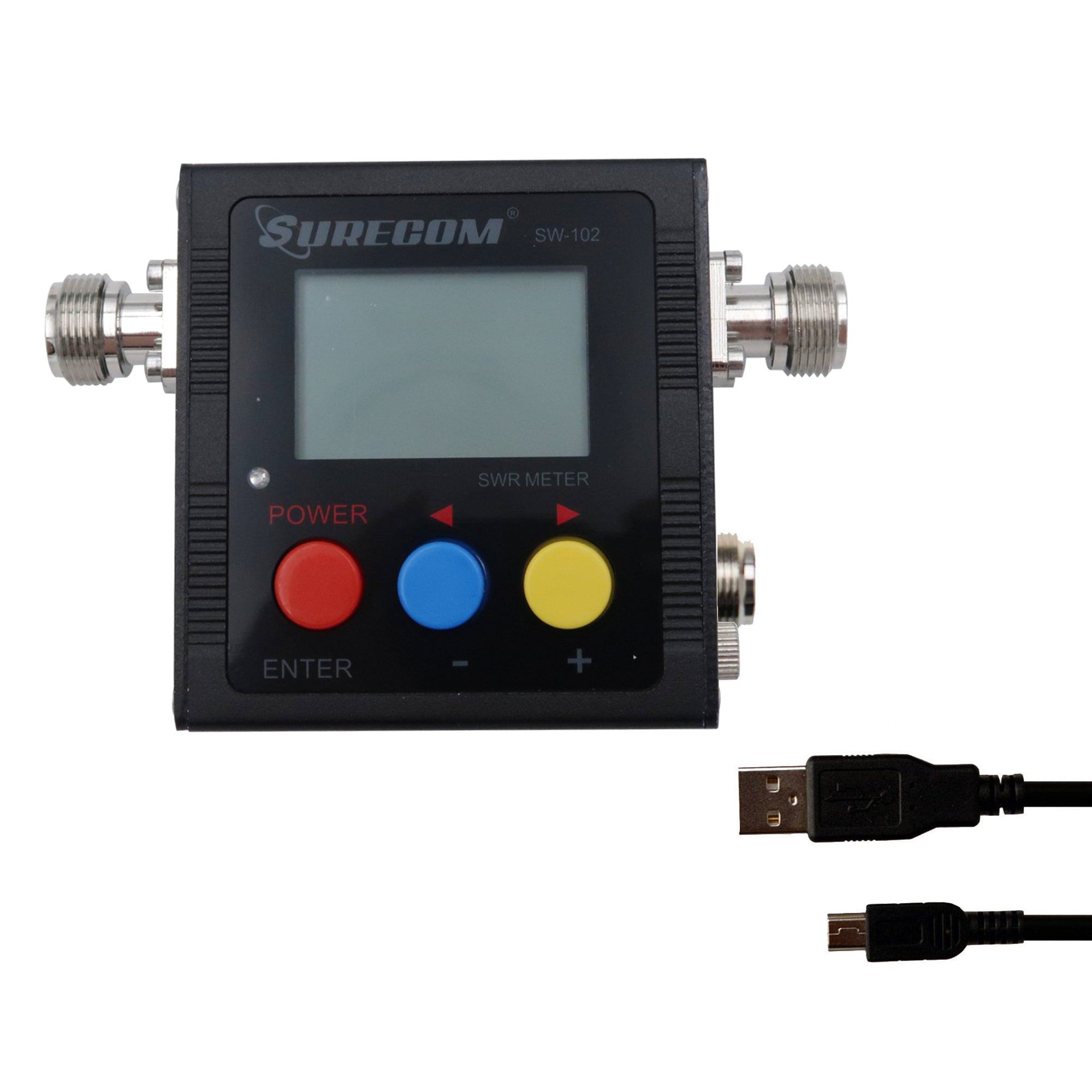

Surecom SW-102S Digital VHF/UHF 125-525Mhz SO239 Connector Power & SWR Meter (SW102-S)



  • $42.65

Warning: DOES NOT compatible with Digital Radio

Model: SW-102S
1 VSWR. Forward and reflected power direct digital readout, without any calibration.
2. Maximum measurable power range up to 120W.
3 low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
4.Build in Frequency counter .
5. All Function display ( Frequency,Power , SWR,FW,RW,Battery Level)

Frequency range: 125 – 525MHz
Measurable power range: 1 – 120W(+-0.5%)
Input Frequency counter (min 0.5 W input)
Maximum power: 120W
Impedance: 50Ω
Size: W 76 X H 77 X D35 mm.
Weight: < 220 grams
Battery : 3.7V Li-ion
Rechargeable Battery Interface: SO239
Interface MAX. Power in: 120 W (Measurable power,Radio must be ANALOG)
V.S.W.R: 1.00~19.9
Frequency Ranger:
COVER : 100MHz~520MHz
Insertion Loss: < 0.15dB(VHF) , < 0.25dB(UHF)
Temperature: 0℃~60℃
Frequency counter: Yes ( TX input must be minimum 0.5W + – 0.5%)
Battery Voltage Display: Yes
Battery Build-in: 600 mAh Li-ion Battery
Auto Power Off: 1-9 mins
Size: 66*68*37 (mm)
Charger in: 5V (micro usb)
Backlight: AUTO OFF 1-9 mins
Interface (in and out ): SO239
Weight: 220g (include battery)

Package includes
1 x SW-102S
1 x USB Charging Cable
1 x User Manual
