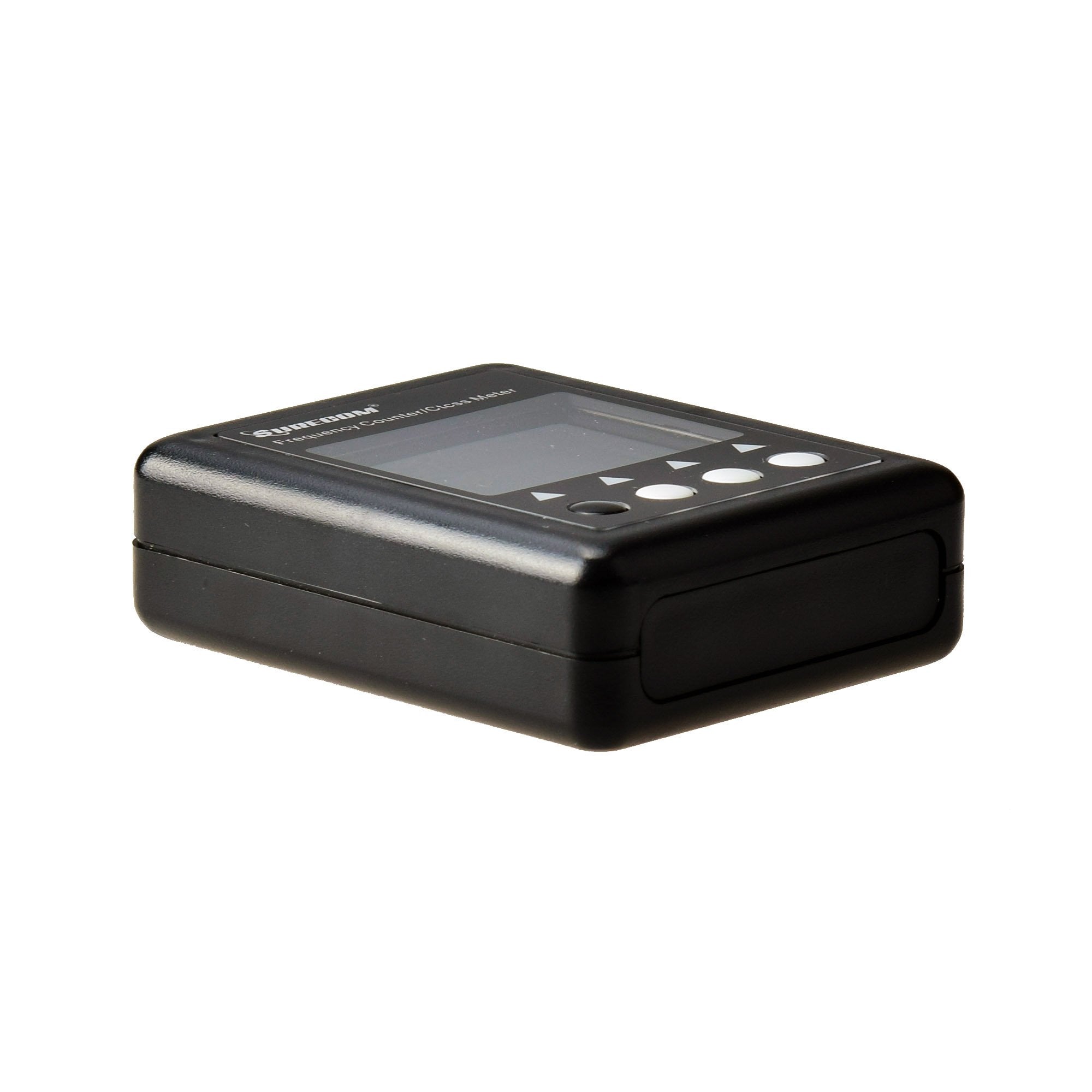

Surecom SF 401 Plus Hand-Held Frequency Counter w/ EXTRA SMA-Male 19cm Antenna
msc-030002Description
- The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator.
- It is the tool of choice for maintenance personnel ,test frequency and signal strength of wireless enthusiasts.
- This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio.
- There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure.
- Its four-button control is easy to use and its small size allows you to carry it anywhere you like.
- Work by TCXO(Temperature Compensate X'tal (crystal) Oscillator) ,In the range of -45 ℃ ~ 65 ℃ can reach ± 2 ~ ± 4ppm accuracy
- This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF
- DMR Radio signal e frequency counter.
- Easy Battery level
- Included an extra 5-003BNC-UV 19cm Antenna SMA-Male 144/430Mhz Antenna
Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance)
To count frequency:
1) Switch the ATT button to left hand side
2) Change the antenna into VHF or Dual Band accordingly
Feature & Specification:
- Frequency range: 100Mhz-3000Mhz
! Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance)
- CTCSS/DCS Decoder
- LCD Dim level setting
- Frequency digital 0.000 or 0.0000 ( +-0.001)
- Work by TCXO( Temperature Compensate X'tal (crystal) Oscillator) 2~2.5ppm
- Frequency Response time: 0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec)
- TFT Color Display 240 x 320
- Build-in Li-ion battery
- Net Weight: 113g
- 4 buttons control
- Auto power off 1-9minutes
- Charging battery LED indicator
- Charging battery LED indicator
Specifications: |
|||
Brand Name: | SURECOM HK | SF-401 | SF-401-PLUS |
DIGITAL RADIO signal | DMR | No | YES |
Signal attenuation s.w. |
-10db | No | YES |
Battery Buily-in | level | Voltage | Easy icon |
Flash Light | LED | YES | NO |
TFT LCD: | 320 x 240 pixels | YES | YES |
Frequency Range: | 27Mhz -3Ghz | YES | YES |
Li-ion Battery build-in : | 3.7V 600mah | YES | YES |
current consumption: | 10ma | YES | YES |
TCXO crystal Oscillator | +- 2.5ppm | YES | YES |
Changer in: | Micro usb +5V | YES | YES |
impedance input: |
50 Ohm (BNC) | YES | YES |
Weight: |
113g | YES | YES |
Dimensions size : |
70 x 25 x 90mm | YES | YES |
SF-401/PLUS
Power On/Off
Power On –Press and Hold down the [black key] by 2 second
Power Off –Press and Hold down the [black key] by 4 second of number count down to 0
Charging the battery
Plug the Power cord into adaptor , Micro USB connected SF-401, The Led indicating:
*The RED Led is light - Charging
* The Green Led is light - Full
How to check Frequency measuring. See PIC.3
The transmitter near the frequency counter antenna , see the signal reception conditions is zone green, you can test. Please see Pic.3
cautions:
e.g. display 1800.000Mhz , The transmitter distance is too close to the frequency counter will affect the test results, , the signal bar is red .(see Pic.1)
e.g. display 0.000, , The transmitter distance is too far to the frequency counter and signal is weak ,will affect the test results, the signal bar is low .(see Pic.1)
! Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance) .
How to check Frequency of Digital DMR Radio
Press[ F3 Digital] from Measuring screen
Note. Digital model have 3 Decimal only
MENU funtion setting and save. See PIC.4
Press [F1] > into menu Page
Press [F3 down] or [F4 Up] into System and Press [F2 Rtn] into system Page PIC.4
Press[F3 down] or [F4 Up] select funtion ,Press [F2 Edit] > [F3 - ][F4 +] change mode
Press[Menu] > [F1 ]to Exit or [F4 ] to Save and Exit
CTCSS/DCS Decoder for ANALOG mode
CTCSS
CTCSS (Hz) | |||
50.0 | 97.4 | 151.4 | 192.8 |
55.0 | 100.0 | 156.7 | 196.6 |
67.0 | 103.5 | 159.8 | 199.5 |
69.3 | 107.2 | 162.2 | 203.5 |
71.9 | 110.9 | 165.5 | 206.5 |
74.4 | 114.8 | 167.9 | 210.7 |
77.0 | 118.8 | 171.3 | 218.1 |
79.7 | 123.0 | 173.8 | 225.7 |
82.5 | 127.3 | 177.3 | 229.1 |
85.4 | 131.8 | 179.9 | 233.6 |
88.5 | 136.5 | 183.5 | 241.8 |
91.5 | 141.3 | 186.2 | 250.3 |
94.8 | 146.2 | 189.9 | 254.1 |
CDCSS
Standard | sf401 check |
Standard | sf401 check |
Standard | sf401 check |
Standard | sf401 check |
|||
23 | 23 | 143 | 143 | 266 | 465 | 465 | ||||
25 | 25 | 145 | 271 | 271 | 466 | 466 | ||||
26 | 26 | 152 | 152 | 274 | 503 | 503 | ||||
31 | 31 | 155 | 155 | 306 | 306 | 506 | 506 | |||
32 | 32 | 156 | 156 | 311 | 311 | 516 | 516 | |||
36 | 162 | 162 | 315 | 315 | 532 | 532 | ||||
43 | 43 | 165 | 165 | 325 | 546 | 546 | ||||
47 | 47 | 172 | 172 | 331 | 331 | 565 | 565 | |||
51 | 51 | 174 | 174 | 332 | 606 | 606 | ||||
53 | 205 | 205 | 343 | 343 | 612 | 612 | ||||
54 | 54 | 212 | 346 | 346 | 624 | 624 | ||||
65 | 65 | 223 | 223 | 351 | 351 | 627 | 627 | |||
71 | 71 | 225 | 356 | 631 | 631 | |||||
72 | 72 | 226 | 226 | 364 | 364 | 632 | 632 | |||
73 | 73 | 243 | 243 | 365 | 365 | 654 | 654 | |||
74 | 74 | 244 | 244 | 371 | 371 | 662 | 662 | |||
114 | 114 | 245 | 245 | 411 | 411 | 664 | 664 | |||
115 | 115 | 246 | 412 | 412 | 703 | 703 | ||||
116 | 116 | 251 | 251 | 413 | 413 | 712 | 712 | |||
122 | 252 | 423 | 423 | 723 | 723 | |||||
125 | 125 | 255 | 431 | 431 | 731 | 731 | ||||
131 | 131 | 261 | 261 | 432 | 432 | 732 | 732 | |||
132 | 132 | 263 | 263 | 445 | 445 | 734 | 734 | |||
134 | 134 | 265 | 265 | 464 | 464 | 743 | 743 | |||
754 | 754 |

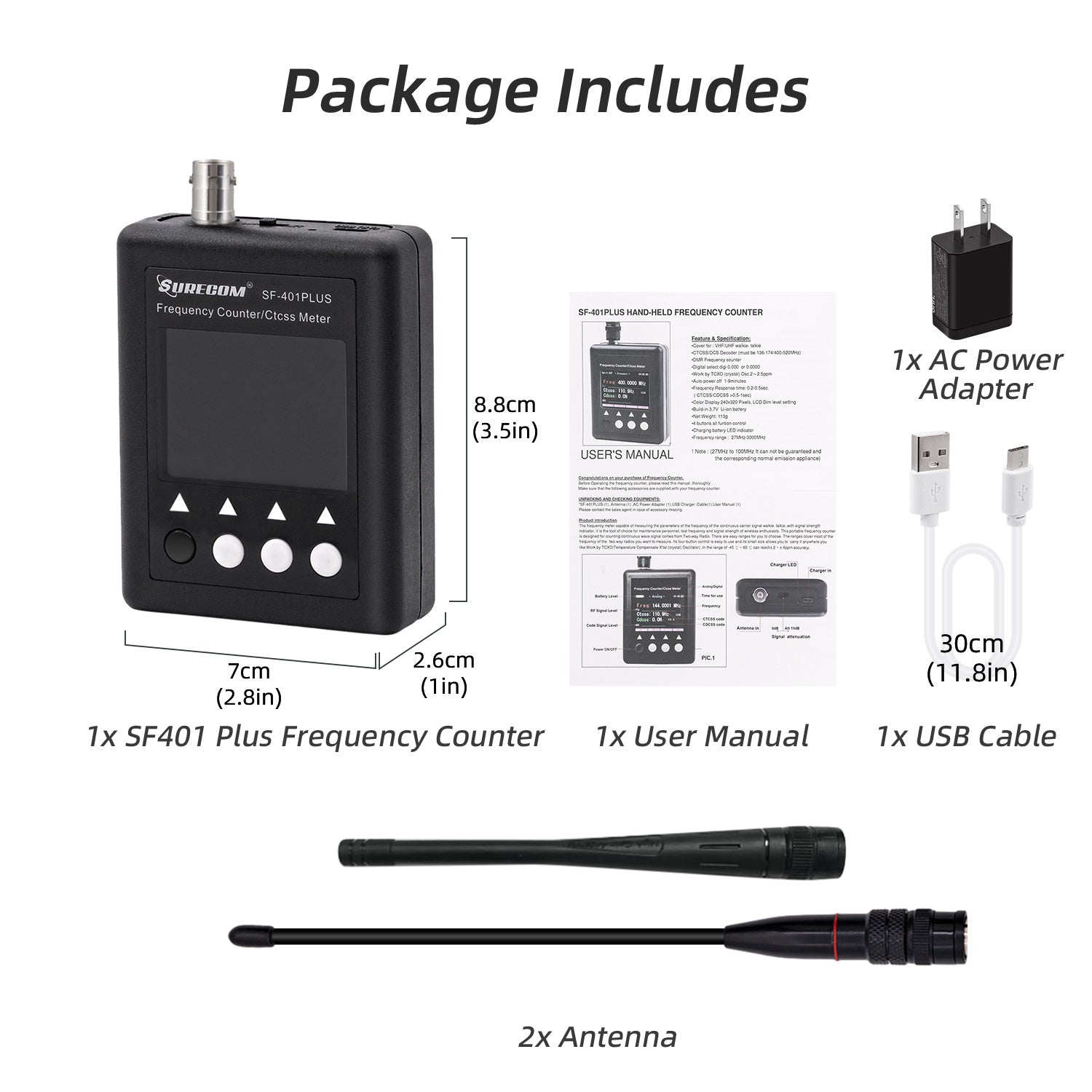

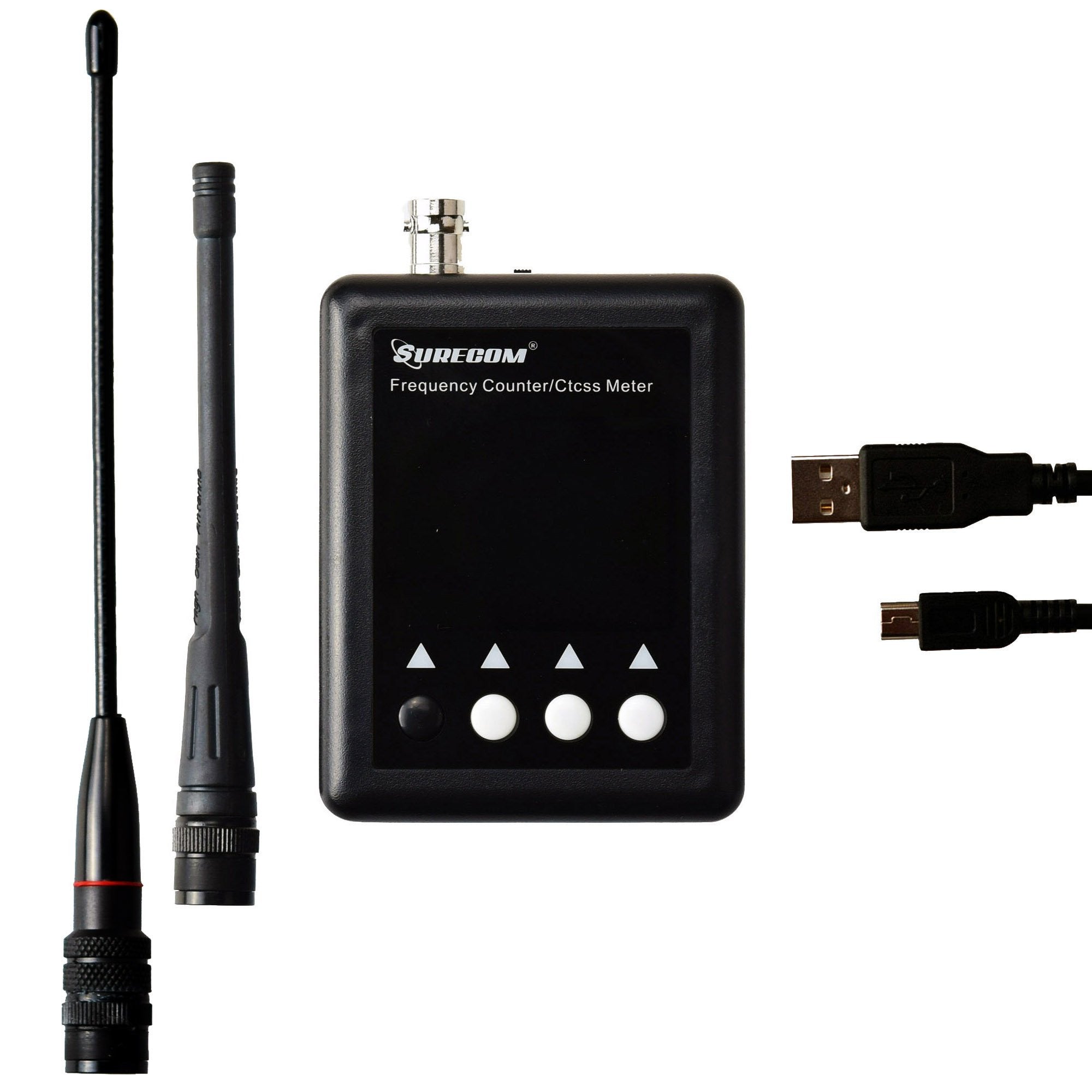

Package Includes:
1 x SF-401
1 x Original Antenna
1 x 5-003BNC-UV 19cm Antenna SMA-Male 144/430Mhz Antenna
1 x Manual
1 x USB Charging Cable
1 x Power Adapter
